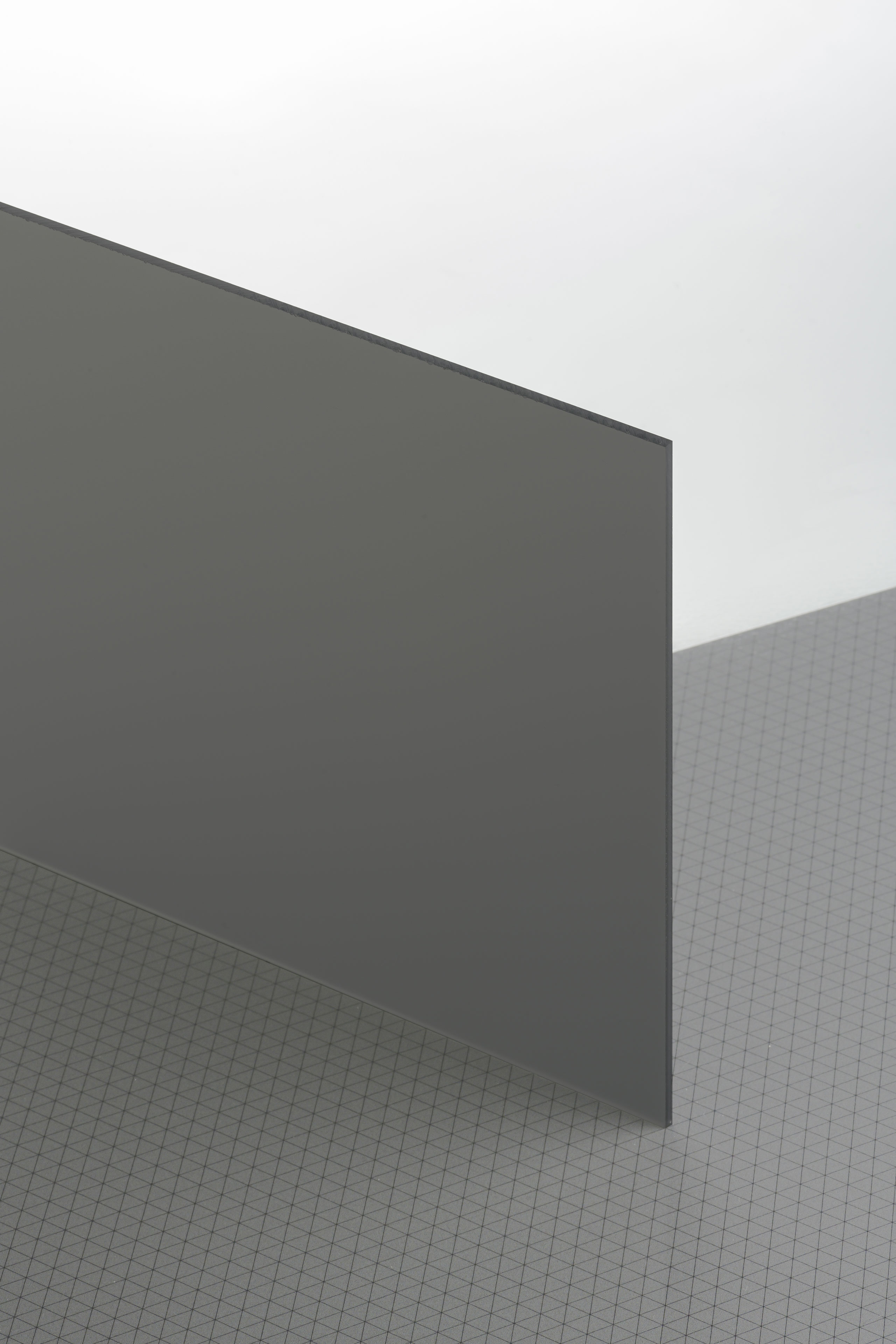

PLEXIGLAS® LED 9H04 SC Acrylic Sheet For Black White Signage

PLEXIGLAS® LED 9H04 SC Acrylic Sheet is made as an Extruded Translucent material designed for controlled Backlighting applications where Visual Transformation is required. In Ambient Daylight Conditions, PLEXIGLAS® LED 9H04 SC Acrylic Sheet appears Deep Black, providing a Clean and Opaque Surface Finish. When Backlit using LED Sources, the material Transitions to a Bright White Illumination State with approximately 18% Light Transmission, enabling Distinct Day to Night Contrast Performance.

The Optical Behavior of PLEXIGLAS® LED 9H04 SC Acrylic Sheet is achieved through Integrated Light Diffusing Pigments that Disrupt Direct Light Paths and Redistribute Photonic Energy across the Surface Area. This Mechanism minimizes Hot Spots and ensures Uniform Luminance, even in Large Format Signage. The controlled Scattering effect is further enhanced by Internal Diffuser Particles which Refract Incoming Light to deliver Consistent Brightness.

Surface Engineering of PLEXIGLAS® LED 9H04 SC Acrylic Sheet incorporates 1 Matte Side and 1 Glossy Side, allowing Flexible Design Orientation depending on Glare Control or Aesthetic Requirements. The material does not Transmit UV Radiation, protecting Internal Components and maintaining Stable Optical Performance over Extended Service Life in Outdoor Environments.

From a Mechanical Perspective, PLEXIGLAS® LED 9H04 SC Acrylic Sheet offers High Surface Hardness combined with Reduced Mass, approximately Half the Weight of Conventional Glass. It Demonstrates Superior Impact Resistance and Improved Chemical Stability. Compared to Standard PMMA Alternatives, it exhibits Significantly Higher Resistance to Microcracking under Environmental Stress such as Thermal Cycling and Moisture Exposure.

The material Utilizes Naturally UV-Stable Molecular Technology, ensuring Bulk Stability rather than Surface Level Protection. This Prevents Long Term Degradation such as Brittleness and Surface Cracking. Additionally, PLEXIGLAS® LED 9H04 SC Acrylic Sheet is Fully Recyclable and Complies with ROHS and REACH Standards, supporting Sustainable material Selection in Engineering Projects.

Typical applications of PLEXIGLAS® LED 9H04 SC Acrylic Sheet Include Backlit Signage Systems, Retail Displays, Exhibition Structures, Interior Design Features, and Architectural Elements requiring Dynamic Visual Effects. Its Ability to switch appearance from Black to Illuminated White makes it Highly Suitable for Premium Branding and Adaptive Lighting Installations.

PLEXIGLAS® LED 9H04 SC Acrylic Sheet
Translucent Color Changing Black & White
Extrusion GRade
Back Lighting
UV Blocking Grade
UL94-HB Rated at 3.0 mm Thickness
ROHS and REACH Compliant Acrylic Sheet
30 Years Guarantee
